GC Alloc when using a Evaluate Graph as an Update Service Node

[FunctionOverflu]

Logic Toolkit version: 1.10.1
Unity: 6000.1.2f1
How to reproduce:

1. Create a logic behaviour in an empty scene
2. Create a Evaluate Graph in the logic editor that does nothing

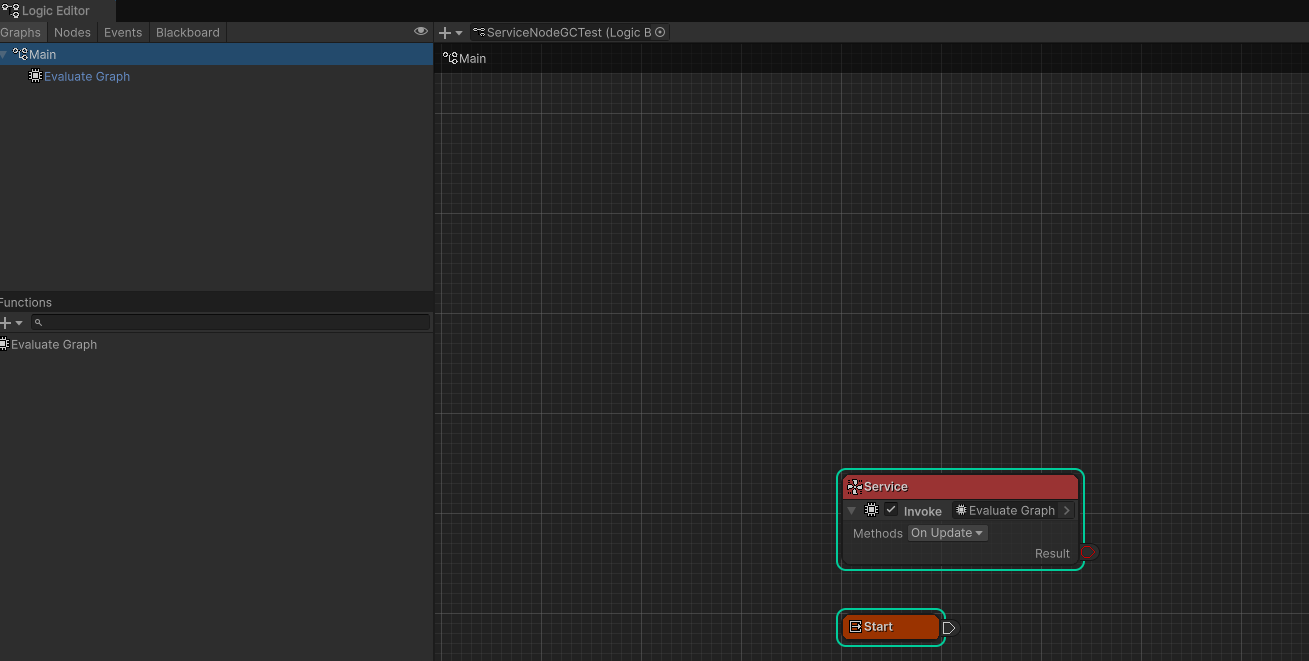

3. Use the newly created Evaluate Graph as an action run by a Service Node with Methods set to OnUpdate

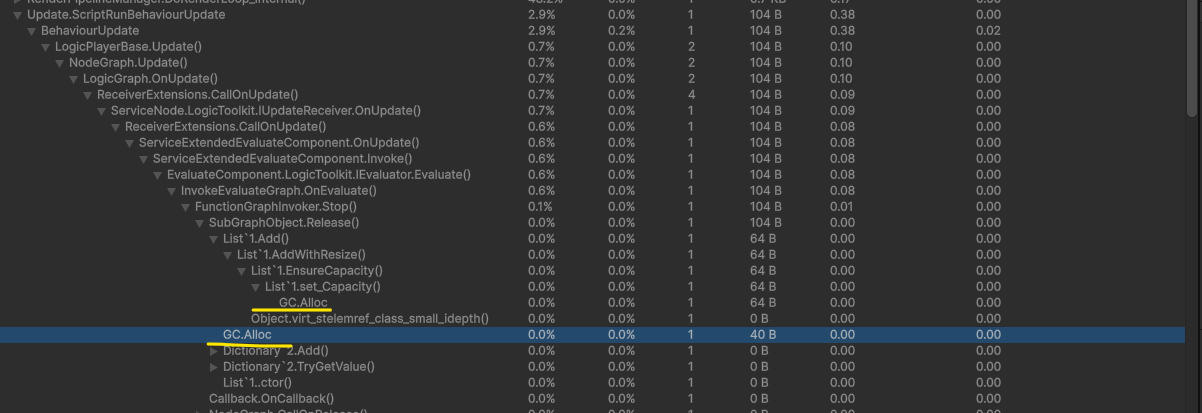

4. Spot the allocation every frame in the profiler



[caitsithware]

Thank you for reporting this.

I checked and was able to reproduce the issue.
Since it is not considered urgent, we will fix it together with other updates.

Temporary solution

1. Open Packages/com.caitsithware.logictoolkit/Runtime/Graph/Objects/SubGraphObject.cs in a code editor
2. Comment out the code from lines 58 to 61 as follows

   Code: Select all

   //if (pool.Count == 0)
   //{
   // s_Pools.Remove(nodeGraphData);
   //}
